Compact Substation Manufacturer in India

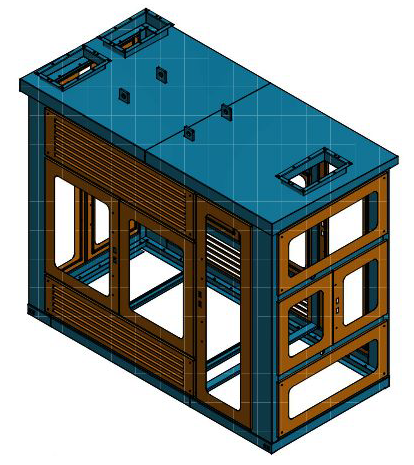

• A Compact Substation, as the name defines everything, integrates essential electrical components into a single much smaller enclosure 500-1000KVA (1.5x3x2.4),1000-3150 KVA (1.8x3.6x2.4).

• Components typically include HV Compartment with HT switchgear ,transformer compartment with transformers and LV compartment with switchgear and APFC

• Used for Capacity up to 3150 KVA of 36 KV class.

• Designed for space efficiency , safely eliminating the need for large outdoor substations

• Suitable for indoor or outdoor installations.

• Enhances safety and reliability.

Features:

• HT Side configurations with RMU, VCB

• Transformer rating up to 3150 KVA

  • Losses as per E1/E2 or as per choice
  • Tested as per 60076 - part 20
  • HT winding with CRT up to 36 KV class
  • LV winding with CRT/VPI with Strip/Foil

• LT switchgear with Fishbone/ open construction

• LT can be configured for Generator, Solar or EB

• LT with/ without Power quality

Advantages:

• Space Saving: Occupies less space than conventional outdoor substations.

• Integrated Design: Combines components into a single unit.

• Easy Installation: Quick and simple setup, requiring less labor.

• Enhanced Safety: Enclosed design reduces risks and includes surge protection.

• Versatile: Suitable for various settings, indoor or outdoor.

• Scalable: Can expand to meet increasing power demands.

• Cost-Effective: Reduces material, labor, and operational costs.

• Environmental Friendly: Energy-efficient design, minimal land usage.

• Remote Monitoring: Offers remote monitoring for improved reliability.

• Compliance: Meets industry standards for reliability and safety.

Applications:

• Urban Areas: where every Sq ft saved is a huge earning.

• Industrial Complexes: Provides reliable power to factories.

• Commercial Buildings: Electricity to malls, offices, and retail centers.

• Renewable Energy Projects: Distributes electricity from solar, wind, or hydro sources.

• Remote Locations: Provides electricity in critical locations like military, Nuclear Power Plant are present.

• Infrastructure Projects: Powers construction sites and public facilities temporarily, (mobile substations can be used).

• Emergency Situations: Offers backup power during disasters.

• Mining Operations: Electricity to mines for operations.

• Data Centers: Distributes power for uninterrupted data operations.

• Telecommunication Towers: Powers communication infrastructure in remote areas.

• Railways-: mainly station lighting areas.
